Programmer's Reference Manual



ADFS


Introduction

ADFS is the Advanced Disc Filing System. It is a module that, together with FileSwitch and FileCore, provides a disc-based filing system.

Most of the facilities that you will use with ADFS are in fact provided by FileCore and FileSwitch, and you should read the chapters on those modules (on FileSwitch and FileCore respectively) in conjunction with this one.

Overview

ADFS is a module that provides the hardware-dependent part of a disc-based filing system. It uses FileCore, and so conforms to the standards for a module that does so; see the chapter entitled FileCore for details.

It provides:

  • a * Command to select itself (*ADFS)
  • a * Command to format discs (*Format)
  • various configure options, accessed using *Configure
  • SWIs that give access to corresponding FileCore SWIs
  • further SWIs to set the address of an alternative hard disc controller, and to set the number of retries used for various operations
  • the entry points and low-level routines that FileCore needs to access the disc controllers and associated hardware.

Except for the low-level entry points and routines (which are for the use of FileCore only) all of these are described below.

Technical details

Formats

For a full summary of 'perfect' ADFS formats, see from Disc formats onwards of the FileCore.

Formatting discs

If you are running a site with a mixture of 1772-equipped 'old' machines and 710/711-equipped 'newer' machines, we recommend that you format all discs on the latter.

On old machines, D and E format discs have the sectors offset between sides for speed optimisation. The 710/711 cannot format discs in this manner, and may run slow when accessing such discs. By formatting discs on newer machines, they will run at the same speed on every machine, albeit some 5% slower than discs with offset sectors can run on older machines.

Likewise, we recommend that any software you ship uses discs that do not offset sectors between sides (ie the discs are formatted on a newer machine).

Software protection schemes

If you wish to vary the format of a disc to provide software protection, you should follow the guidelines below. This will ensure that your discs are reliably readable and quick to load on all RISC OS machines, current or planned.

Disc formats should conform to the specifications in the FileCore, with some exceptions. You may:

  • use different size sectors within any one track
  • arbitrarily vary the ID held in the sector ID, within the limits imposed by the 1772 disc controller (but you must then use the altered ID to access that sector - see below).

You may not:

  • directly access hardware
  • vary the data rate or encoding method within a single track
  • rely on the contents or operation of system data areas (eg 0 - &8000) or FIQ routines
  • access sectors specifying a different ID to that physically held in the sector ID.

The last point prohibits such common practices as reading a 1k sector with a 2k read (to recover inter-sector data), or reading a track with a different head number to that in the sector ID (which works with a 1772, but fails with the 710/711 used on machines such as the A5000).

Limitations of disc controllers place further restrictions on using 128 byte sectors:

  • Always create the master disc with a machine that has a 1772 disc controller
  • Only read a single 128 byte sector at a time.

Disc Drives

For the purposes of formatting, the speed stability of disc drives will be assumed to be 1.5%.

Drives which fit into the following specification will never have a data overrunning:

Variation in speed: ±1.5%
Min. Write to read changeover time: 696 [MU]S (2Meg mode) (43 bytes)
1300 [MU]S (1Meg mode) (40 bytes)
(values for one particular drive)
Track length (nominal) 12500 bytes (2Meg mode)
6250 bytes (1Meg mode)
Assuming the drive is always running fast gives an actual workable track length of: 12312 bytes (2Meg mode)
6156 bytes (1Meg mode)
Fit within track lengths

If evaluating the total byte usage of the given formats gives a number less than the minimum track length, then that format fits and will be reliable.

Here are the parameters of the parts of a track:

(soft) Index mark 96 bytes
Minimum gap 4 30 bytes (2Meg mode)
40 bytes (1Meg mode)
Sector overhead 62 bytes (includes gap 2 and pre-ambles):
Bytes Use
12 00-bytes (preamble)
3 A1-bytes
1 FE-ID of address field
1 Track
1 Side
1 Sector
1 Length
1 CRC 1
1 CRC 2
22 4e-gap 2
12 00-bytes (preamble)
3 A1-bytes
1 FB-ID of data field
n (data - not included in sector overhead)
1 CRC 1
1 CRC 2
62 Total

Plugging the numbers in gives:

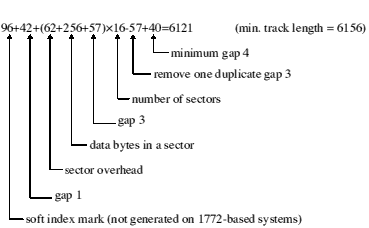

L format


Byte usage for a track: L format

D and E formats

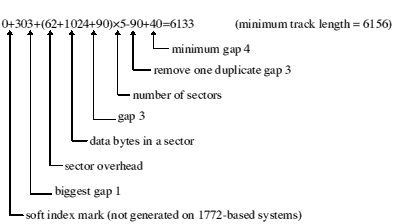

1772-based system without index mark:


Byte usage for a track: D and E formats (no index mark)

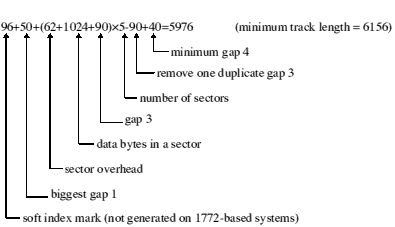

710/711-based system with index mark (gap 1 forced to 50 bytes by the 710/711):


Byte usage for a track: D and E formats (index mark)

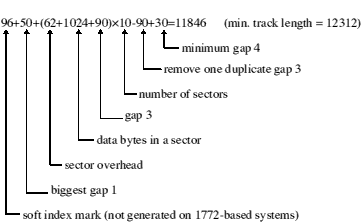

F format


Byte usage for a track: F format

Minimum Gap3 size

In checking the gap 3 value assuming worst case drive speed variation:

  • The drive speed variation gives 3% variation total (assuming the drive used for formatting was 1.5% fast and for writing is 1.5% slow).
  • The write-to-read times give the further slack needed which gives the minimum value for gap3.
  • The total variation in bytes is in the section of a sector from gap2 to the end of CRC2 after the data.

This gives an overhead over the data of 40 bytes.

L format


Minimum Gap3 size: L format

D and E formats


Minimum Gap3 size: D and E formats

F format


Minimum Gap3 size: F format

Worst write to read time

Working the calculations the other way round gives the worst case values for the write-to-read time for a drive whose speed variation is 1.5%:

L format


Worst write to read time: L format

D and E formats


Worst write to read time: D and E formats

F format


Worst write to read time: F format

Hardware Limits

Controllers

These are the limit parameters for the two floppy controllers ADFS supports:

Controller 1772 710/711
Sectors per track, low 1 0
Sectors per track, high 240 255
Track, low 0 0
Track, high 240 255
Log2 (sector length), low 7 7
Log2 sector length, high 10 14
Sector number, low (formatting) 0 0
Sector number, high (formatting) 255 255
Format fill values always allowed 00-&F4, &FF 00-&FF
Formatting with ID mark optional forced
Gap3 maximum length (formatting) track length 255

Recommended formats

(These values are extracted from the 1772 data sheet)

Dens gap1 gap3 ~gap4
FM >=16 >=10 >=16
MFM >=32 >=24 >=16

Evaluation of 'does it fit' is:

Low track length - gap1 + gap3 - (secsize + SecOvrhead + gap3)×secs >= min. gap4

If 'no', does it fit using minimum gap1 and minimum gap3?

  • If so, divide slack amongst gaps (including gap4); else return error

Does the side/side skew invalidate gap4?

  • If so, shorten it to minimum gap4

Floppy drive types supported by 710/711 driver

The range of floppy drives supported by the 82C710/82C711 driver is considerably wider than that supported by older drivers. In general any PC/XT/AT compatible 31/2"/51/4" 40/80 track drive can be used. The following minimal requirements will ensure optimal performance:

  • Disc changed support should be available on pin 34, and should be resettable with a step pulse.
  • The drive should mask index pulses when selected but without a disc present.
  • The drive should not mask index pulses whilst step pulses are being issued.
  • The drive should support a 'density in' signal (from FDC) that is active high for high density (>=500Kbps).
  • The drive should supply media ID signals that indicate the greatest density supported by the current drive/media.
  • Drives 0/1 should be ready to use within 500mS of motor startup.
  • Drives 2/3 should be ready to use within 1000mS of motor startup.
Motor on and drive select signals

The following table illustrates the combination of motor on and drive select signals supplied for various drive selections:

Drive Selected /DS0 /DS1 /ME0 /ME1
0 L H L H
1 H L H L
2 H H H L
3 H H L L
None H H H H

Drives 2 and 3 do not result in any drive select line being asserted, but can be decoded by an external decoder.

Drive interface signal description

To help you understand the floppy disc drive interface, this section discusses further the function and use of each of the interface signals.

General

All interface signals are open-collector, and therefore require a pull-up resistor of nominally 1k[OMEGA] FOR 31/2" SYSTEMS OR 150[OMEGA] IN OLDER 51/4" systems. The pull-up should be present in one place only - either on the drive furthest from the controller (for outputs), or on the controller (for inputs).

Due to the nature of open collector signals no damage will occur if several outputs drive one signal; thus it is safe, for instance, to connect 'motor on' to 'Sel2' and force motor on true whenever Sel2 is asserted.

All signals are active (asserted) low, ie active when at 0 Volts. Inputs are only valid when a drive is selected.

Drive Select 0, 1, 2 and 3 - Output

Used to select the drive; only one should be active at any given time. Most 'AT' compatible drives assume only drive select 1 will ever be asserted, since there is a physical twist in the cable to determine the actual drive number.

Motor On - Output

Asserted to turn the drive motor on (and load the head on 51/4" drives). A period of 0.5 seconds (1 second for drives 2 and 3) is allowed before any data transfer occurs to allow the drive motor to come up to speed.

Side1 - Output

Asserted to select the under surface of a disc

Step - Output

Asserted to step the head in the direction given by DirIn. Also used to reset DiscChanged. A period of 15-20 ms is required to allow for head settling after any movement.

DirIn - Output

Asserted to move the head inwards (to the centre) during head movements.

WriteData - Output

Data from the controller to be written to disc.

WriteGate - Output

Qualifies WriteData. Asserted prior to and after WriteData is true to enable recording of the data.

Density - Output

Informs the drive of the current data rate. Asserted for 500Kbps and 1Mbps operations (1.6 and 3.2 Mbyte formats). Normally on pin2, some drives may require an inverted signal if intended for use with PS/2 systems.

Track00 - Input

Asserted by the drive when the head is on track 0.

WriteProtect - Input

Asserted by the drive when the disc is write protected.

ReadData - Input

Data stream read from the disc.

Index - Input

Index pulses are produced every disc revolution (200mS). The 82C710/82C711 driver uses the presence of index pulses to detect a disc in. If a drive does not support 'DiscChanged' then in order to function with the 82C710 /82C711 driver it must inhibit index pulses with the drive empty; this is the normal situation. Performance is improved if index pulses are not masked during seek or motor startup. Index pulses must be present within 900mS (1400mS for drives 2 and 3) of asserting drive select/motor on, otherwise the drive will be deemed to be empty.

DiscChanged - Input

This signal is normally available on pin34 or pin2 and when asserted indicates that the disc in the selected drive has been changed. Neither the 1772 nor the 82C710/82C711 driver require DiscChanged in order to function, but give better performance if available. The signal must never be asserted if non-functional.

Dependent upon drive type the disc changed signal may either be reset by issuing a step pulse (82C710/82C711 driver) and/or by asserting the disc changed reset signal (1772 driver). If DiscChanged is reset by 'step', the wimp polling period is set to 1 per second; otherwise it is set to 10 times per second.

Ready - Input

Often available on 51/4" drives, and available from drives for A440/540 series machines on pin34. Asserted when the drive is ready for read/write operations. This feature is required by the 1772 driver. If not present, Ready must be tied low for the driver to function.

Disc errors

Disc errors are errors returned by the controller. The following sections list the disc error codes returned for all controllers currently used in RISC OS computers.

1772 (floppy disc) error codes

1772 disc error codes are basically the error codes returned in the status byte of the 1772. These are the status bits in that status byte:

Bit Name Meaning
7 FdcMotorOnBit
6 WProtBit Write protect (translated to disc write protected error)
5 WFaultBit Write fault
4 RnfBit Record not found
3 CrcBit CRC error
2 LostBit Lost data
1 Track0Bit
0 BusyBit

So, disc error 8 is a CRC error

ST506 (hard disc) error codes

ST506 disc error codes are the error codes returned by the HD63463 (ST506) controller shifted right by 2 bits, which gives:

Value Name Meaning
&01 ABT Command abort has been accepted

&02 IVC Invalid command

&03 PER Command parameter error

&04 NIN Head positioning, disc access, or drive check command before SPC has been issued

&05 RTS TST command after SPC command

&06 NUS USELD for a selected drive has not been returned

&07 WFL Write fault (WFLT) has been detected on the ST506 interface
&08 NRY Ready signal has been negated
&09 NSC Seek complete (SCP) wasn't returned before timeout
&0A ISE SEK, or disc access command issued during a seek
&0B INC Next cylinder address greater than number of cylinders
&0C ISR Invalid step rate: highest-speed seek specified in normal seek mode.
&0D SKE SEK or disc access command issued to drive with seek error
&0E OVR Data overrun (memory slower than drive)
&0F IPH Head address greater than number of heads
&10 DEE Error Correction Code (ECC) detected an error
&11 DCE CRC error in data area
&12 ECR ECC corrected an error
&13 DFE Fatal ECC error in data area
&14 NHT In CMPD command data mismatched from host and disc
&15 ICE CRC error in ID field (not generated for ST506)
&16 TOV ID not found within timeout
&17 NIA ID area started with an improper address mark
&18 NDA Missing address mark
&19 NWR Drive write protected
IDE error codes

IDE disc errors are, where possible, mapped onto a similar error from an ST506 - in which case the name of the ST506 error is shown below. Other IDE disc errors are given error codes outside the range used by the ST506:

Value Name Meaning
&02 IVC command aborted by controller
&07 WFL write fault
&08 NRY drive not ready
&09 NSC track 0 not found
&13 DFE uncorrected data error
&16 TOV sector id field not found
&17 NIA bad block mark detected
&18 NDA no data address mark
&20   no DRQ when expected
&21   drive busy when commanded
&22   drive busy on command completion
&23   controller did not respond within timeout
&24   unknown code in error register
710/711 (floppy disc) error codes

710/711 disc error codes are the error codes returned by the (functionally equivalent) 82C710 and 82C711 controllers, which are:

Value Meaning
&01 Fatal - controller hardware error
&02 Fatal - command timed out, drive problem
&03 Fatal - Track 0 not found, drive problem
&10 Critical - seek fault
&20 Recoverable - non specific command error
&21 Data overrun
&22 Data CRC error
&23 Sector or ID not found
&24 Missing address mark

Service Calls


Service_IdentifyFormat
(Service Call &6B)

Identify disc format name

On entry

R0 = pointer to format specification string (null terminated)
R1 = &6B (reason code)

On exit

All registers preserved (if not claimed)

If claimed:
R0 preserved
R1 = 0
R2 = SWI number to call to obtain raw disc format information
R3 = parameter in R3 to use when calling disc format SWI
R4 = SWI number to call to lay down a disc structure
R5 = parameter in R0 to use when calling disc structure SWI

Use

This call is issued by a handler of discs (such as ADFS) to find how to initialise a disc to a specified format. The format specification string is the same as the format parameter specified in the *Format command (see *Format).

You should claim this call if your module recognises the format specification string as one that you support. If you do not recognise the format - or if you don't support disc formats at all - you should pass the call on with all registers preserved.

For an example of a call used to obtain raw disc format information, see DOSFS_DiscFormat. Similarly, for an example of a call used to lay down a disc structure, see DOSFS_LayoutStructure.


Service_DisplayFormatHelp
(Service Call &6C)

Display list of available formats

On entry

R0 = 0
R1 = &6C (reason code)

On exit

If no error occurred whilst displaying the help:
R0, R1 preserved to pass on

If an error occurred whilst displaying the help:
R0 = pointer to error block
R1 = 0 to claim

Use

This service call is issued when the user requests help on the available formats (eg types *Help Format). Your module should list the formats it will recognise in response to Service_IdentifyFormat. The list should be displayed one format per line in this format:

format - description

Where format is the text as recognised by Service_IdentifyFormat, and description is a description of the format. For example:

F - 1600K, 77 entry directories, new map, Archimedes ADFS 2.50 and above.

DOS/Q - 1.44M, MS-DOS 3.20, 3.5" high density disc

You should display the list using OS_WriteC or a derivative of that (eg OS_Write0, OS_WriteS etc).

SWI calls


ADFS_DiscOp
(SWI &40240)

Calls FileCore_DiscOp

On entry

See FileCore_DiscOp

On exit

See FileCore_DiscOp

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This SWI calls FileCore_DiscOp, after first setting R8 to point to the FileCore instantiation private word for ADFS.

This call is functionally identical to FileCore_DiscOp.

Related SWIs

FileCore_DiscOp

Related vectors

None


ADFS_HDC
(SWI &40241)

Sets the address of an alternative ST506 hard disc controller

On entry

R2 = address of alternative hard disc controller
R3 = address of poll location for IRQ/DRQ
R4 = bits for IRQ/DRQ
R5 = address to enable IRQ/DRQ
R6 = bits to enable IRQ/DRQ

On exit

--

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This call sets up the address of the ST5056 hard disc controller to be used by the ADFS. For instance, an expansion card can supply an alternative controller to the one normally used. The controller must be an HD63463 (or compatible).

The polling and interrupt sense is done using:

LDRB   Rn, [poll location]
TST    Rn, [poll bits]

The IRQ/DRQ must be 1 when active.

Related SWIs

None

Related vectors

None


ADFS_Drives
(SWI &40242)

Calls FileCore_Drives

On entry

See FileCore_Drives

On exit

See FileCore_Drives

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This SWI calls FileCore_Drives, after first setting R8 to point to the FileCore instantiation private word for ADFS.

This call is functionally identical to FileCore_Drives.

Related SWIs

FileCore_Drives

Related vectors

None


ADFS_FreeSpace
(SWI &40243)

Calls FileCore_FreeSpace

On entry

See FileCore_FreeSpace

On exit

See FileCore_FreeSpace

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This SWI calls FileCore_FreeSpace, after first setting R8 to point to the FileCore instantiation private word for ADFS.

This call is functionally identical to FileCore_FreeSpace.

Related SWIs

FileCore_FreeSpace

Related vectors

None


ADFS_Retries
(SWI &40244)

Sets the number of retries used for various operations

On entry

R0 = mask of bits to change
R1 = new values of bits to change

On exit

R0 preserved
R1 = R0 AND entry value of R1
R2 = old value of retry word
R3 = new value of retry word

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This call sets the number of retries used by writing to the retry word. The format of this word is:

Byte Number of retries for
0 hard disc read/write sector
1 floppy disc read/write sector
2 floppy disc mount (per copy of the disc map)
3 verify after *Format, before sector is considered a defect

The new value is calculated as follows:

(old value AND NOT R0) EOR (R1 AND R0)
Related SWIs

None

Related vectors

None


ADFS_DescribeDisc
(SWI &40245)

Calls FileCore_DescribeDisc

On entry

See FileCore_DescribeDisc

On exit

See FileCore_DescribeDisc

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This SWI calls FileCore_DescribeDisc, after first setting R8 to point to the FileCore instantiation private word for ADFS.

This call is functionally identical to FileCore_DescribeDisc.

Related SWIs

FileCore_DescribeDisc

Related vectors

None


ADFS_VetFormat
(SWI &40246)

Vets a disc format structure for achievability with the available hardware

On entry

R0 = pointer to disc format structure to be vetted
R1 = parameter previously passed by ADFS in R2 to ImageFS_DiscFormat (ie drive number)

On exit

R0, R1 preserved

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This call vets the given disc format structure for achievability with the available hardware. ADFS updates the disc format structure with values that it can actually achieve with the hardware available. For example the only fill byte value available when formatting might be 0, but the requested value may be &4E, hence 0 would be filled in as the fill byte value.

If ADFS cannot sensibly downgrade the parameters given in the disc format structure, it will generate an error.

This call is typically made by FileCore or by the image filing system ImageFS,
in response to ADFS calling FileCore_DiscFormat or ImageFS_DiscFormat (eg DOSFS_DiscFormat) respectively.

This call is not available under RISC OS 2.

The value in R1 is used to pass enough information on the hardware on which the format is to take place for the disc format structure to be vetted. ADFS uses the drive number for this; other handlers of discs may pass different information if they implement a VetFormat SWI.

Related SWIs

None

Related vectors

None


ADFS_FlpProcessDCB
(SWI &40247)

For internal use only

Use

This call is for internal use only. It is not available under RISC OS 2.


ADFS_ControllerType
(SWI &40248)

Returns the controller type of a drive

On entry

R0 = drive number (0 - 7)

On exit

R0 = controller type

0 => disc not present
1 => 1772
2 => 710/711
3 => ST506
4 => IDE

Flags corrupted

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This call returns the controller type of the given drive.

This call is not available under RISC OS 2.

Related SWIs

None

Related vectors

None


ADFS_PowerControl
(SWI &40249)

Controls the power-saving features of the ADFS system

On entry

R0 = reason code:

0 => read drive spin status
1 => set drive autospindown
2 => control drive spin directly without affecting autospindown

R1 = drive
R2 = drive autospindown, if R0 = 1:

= 0 => disable autospindown and spinup drive
[NOT EQUAL] 0 => set autospindown to (R2 × 5) seconds

or action to take, if R0 = 2:

= 0 => spin down immediately
[NOT EQUAL] 0 => spin up immediately

On exit

R2 = drive spin status, if R0 = 0 on entry:

= 0 => drive is not spinning
[NOT EQUAL] 0 => drive is spinning
R3 = previous value for drive autospindown, if R0 = 1 on entry

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This call controls the power-saving features of the ADFS system.

It can be dangerous to use this call on drives that do not fully support drive spin control. The controllers on at least two drives tested hang up when autospindown is enabled; a reset does not recover the situation, although a power-on reset does.

This call is not available under RISC OS 2.

Related SWIs

None

Related vectors

None


ADFS_SetIDEController
(SWI &4024A)

Gives the IDE driver the details of an alternative controller

On entry

R2 = pointer to IDE controller
R3 = pointer to interrupt status of controller
R4 = AND with status, NE => IRQ
R5 = pointer to interrupt mask
R6 = OR into mask enables IRQ
R7 = pointer to data read routine (0 for default)
R8 = pointer to data write routine (0 for default)
R12 = pointer to static workspace

On exit

All registers preserved

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This call gives the IDE driver the details of an alternative controller.

In versions of ADFS supplied before RISC OS 3.5, R4 must be 1 on entry (ie the interrupt status must be in bit 0).

This call is not available under RISC OS 2.

Related SWIs

None

Related vectors

None


ADFS_IDEUserOp
(SWI &4024B)

Direct user interface for low-level IDE commands

On entry

R0 =

bit 0 set => RESET CONTROLLER_ CLEAR => process command
bits 24 - 25 = transfer direction:
00 => no transfer
01 => read (ie bit 24 set)
10 => write (ie bit 25 set)
11 reserved
R2 = pointer to parameter block for command and results
R3 = pointer to buffer
R4 = length to transfer
R5 = timeout in centiseconds (0 => use default)
R12 = pointer to static workspace

On exit

R0 = command status (0 or a disc error number)
R2, R3 preserved
R4 updated
R5 corrupted

Interrupts

Interrupts are enabled
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This call provides the direct user interface for low-level IDE commands. It must not be called in background.

This call is not available under RISC OS 2.

Related SWIs

None

Related vectors

None


ADFS_MiscOp
(SWI &4024C)

Calls FileCore_MiscOp

On entry

See FileCore_MiscOp

On exit

See FileCore_MiscOp

Interrupts

Interrupt status is undefined
Fast interrupts are enabled

Processor mode

Processor is in SVC mode

Re-entrancy

Not defined

Use

This SWI calls FileCore_MiscOp, after first setting R8 to point to the FileCore instantiation private word for ADFS.

This call is functionally identical to FileCore_MiscOp.

Related SWIs

FileCore_MiscOp

Related vectors

None


ADFS_ECCSAndRetries
(SWI &40250)

For internal use only

Use

This call is for internal use only. It is not available under RISC OS 2.

* Commands


*ADFS

Selects the Advanced Disc Filing System as the current filing system

Syntax

*ADFS

Parameters

None

Use

*ADFS selects the Advanced Disc Filing System as the filing system for subsequent operations. Remember that it is not necessary to switch filing systems if you use the full pathnames of objects. For example, you can refer to NetFS objects (on a file server, say) when ADFS is the current filing system.

Example

*ADFS

Related commands

*Net, *RAM, *ResourceFS


*Configure ADFSbuffers

Sets the configured number of ADFS file buffers

Syntax

*Configure ADFSbuffers n

Parameters

n - number of buffers

Use

*Configure ADFSbuffers sets the configured number of 1 Kbyte file buffers reserved for ADFS in order to speed up operations on open files. A value of 1 sets a default value appropriate to the computer's RAM size; a value of 0 disables fast buffering on open files.

Example

*Configure ADFSbuffers 8


*Configure ADFSDirCache

Sets the configured amount of memory reserved for the directory cache

Syntax

*Configure ADFSDirCache size[K]

Parameters

size - kilobytes of memory reserved

Use

*Configure ADFSDirCache sets the configured amount of memory reserved for the directory cache. Directories are stored in the cache to save reading them from the disc; this speeds up disc operations, and reduces disc wear. A value of 0 sets a default value appropriate to the computer's RAM size.

Example

*Configure ADFSDirCache 16K


*Configure Drive

Sets the configured number of the drive that is selected at power on

Syntax

*Configure Drive n

Parameters

n - drive number

Use

*Configure Drive sets the configured number of the drive that is selected at power on. 0-3 correspond to floppy disc drives; 4-7 correspond to hard disc drives. Since most Acorn computers have only one floppy disc drive and no more than one hard disc drive, the most common values are 0 or 4.

Example

*Configure Drive 0

Related commands

*Configure Floppies, *Configure HardDiscs, *Configure FileSystem


*Configure Floppies

Sets the configured number of floppy disc drives recognised at power on

Syntax

*Configure Floppies n

Parameters

n - 0 to 4

Use

*Configure Floppies sets the configured number of floppy disc drives recognised at power on. The default value is 1.

Example

*Configure Floppies 0

Related commands

*Configure HardDiscs


*Configure HardDiscs

Sets the configured number of ST506 hard disc drives recognised at power on

Syntax

*Configure HardDiscs n

Parameters

n - 0 to 2

Use

*Configure HardDiscs sets the configured number of ST506 hard disc drives recognised at power on. These disc drives are the standard ones fitted to early models of RISC OS computers (eg the Archimedes 300, 400 and 500 series, and the A3000). More recent models (eg the A5000) use IDE discs; for such models, you should set the configured number of ST506 drives to zero, and use the *Configure IDEDiscs command to set the number of hard discs.

The default value depends on the model of computer (for example, an Archimedes 305 is not supplied with a hard disc, so the value is 0). Note however that a delete power-on will not preserve this default value, but will set it to zero.

Example

*Configure HardDiscs 2

Related commands

*Configure Floppies, *Configure IDEDiscs


*Configure IDEDiscs

Sets the configured number of IDE hard disc drives recognised at power on

Syntax

*Configure IDEDiscs n

Parameters

n - 0 to 2

Use

*Configure IDEDiscs sets the configured number of IDE hard disc drives recognised at power on. These disc drives are the standard ones fitted to more recent models of RISC OS computers (eg the A5000). Early models (eg the Archimedes 300, 400 and 500 series, and the A3000) use ST506 discs; for such models, you should set the configured number of IDE drives to zero, and use the *Configure HardDiscs command to set the number of hard discs.

The default value depends on the model of computer. Note however that a delete power-on will not preserve this default value, but will set it to zero.

Example

*Configure IDEDiscs 2

Related commands

*Configure Floppies, *Configure HardDiscs


*Configure Step

Sets the configured step rate of one or all floppy disc drives.

Syntax

*Configure Step n [drive]

Parameters

n - step time in milliseconds
drive - drive number (0 to 3)

Use

*Configure Step sets the configured step rate of one or all floppy disc drives to n, the step time in milliseconds. If the drive parameter is omitted, the step rate is set for all floppy disc drives. This command should only be used with non-Acorn disc drives.

The setting of this value affects disc performance. The optimum setting will vary, and is not necessarily the shortest step time. The default value is 3 milliseconds. It is possible to set values of 2, 3, 6 and 12 milliseconds: if other numbers are supplied, the request will be rounded up to the nearest step available.

Limitations of 710/711 controllers

Due to limitations in the 710/711 controllers it is not always possible to set exactly the step rate configured. The following table shows the configured and actual rates used for various densities:

Configured step rate Actual 710/711 step rate (ms)
Single Double Double+ Quad Octal
2 2 2 1.7 2 2
3 4 4 3.3 3 3
6 6 6 6.7 6 6
12 26 26 25.0 12 8

In single and double density modes, selection of the 12mS step rate actually results in a 26mS rate being used; this is intentional to support older 40/80 track 51/4" discs. At octal density it is not possible to step at 12mS; this is a limitation of the hardware, but should not cause problems since drives capable of supporting octal density can normally be stepped at 2 or 3 ms rates.

The limitations are because the step rates provided by the 710/711 controllers depend on the data clock rate selected. Before every command ADFS calls a routine to check the selected clock rate against the selected data rate and the configured step rate, and hence to determine whether the step rate needs first to be altered.

Example

*Configure Step 3


*Format

Prepares a new floppy disc for use, or erases a used disc for re-use

Syntax

*Format drive [format [disc_name]] [Y]

Parameters

drive - the number of the disc drive, from 0 to 3
format - the type of format required, selected from:

F 1.6M RISC OS 3 77-entry directories, new map
E 800K RISC OS 77-entry directories, new map
D 800K Arthur 1.2 77-entry directories, old map
L 640K all ADFS 47-entry directories, old map
DOS/Q 1.44M MS-DOS 3.20 double sided HD 31/2" disc
DOS/M 720K MS-DOS 3.20 double sided 31/2" disc
DOS/H 1.2M MS-DOS 3 double sided HD 51/4" disc
DOS/N 360K MS-DOS 2, 3 double sided 31/2", 51/4" disc
DOS/P 180K MS-DOS 2, 3 single sided 51/4" disc
DOS/T 320K MS-DOS 1, 2, 3 double sided 51/4" disc
DOS/U 160K MS-DOS 1, 2, 3 single sided 51/4" disc
Atari/M 720K Atari ST double sided 31/2" disc
Atari/N 360K Atari ST single sided 31/2" disc

disc_name - the name to be given to the disc
Y - no prompt for confirmation

Use

*Format prepares a new floppy disc for use, or erases a used disc for re-use.

Early models of RISC OS computers (eg the Archimedes 300, 400 and 500 series, and the A3000) do not have the disc drives and controllers necessary to use DOS/H, DOS/Q and F formats. RISC OS 2 only supports L, D and E formats. Newer models of RISC OS 3 computers (eg the A5000) can use all the above formats.

The default is to use F format if possible; otherwise E format is used. These formats offer improved handling of file fragmentation on the disc and therefore do not need to be periodically compacted (see the *Compact command).

Examples

*Format 0
Formats to default format

*Format 0 L
Formats the disc in drive 0 for use with ADFS on the BBC Master range of computers

Related commands

*Compact

This edition Copyright © 3QD Developments Ltd 2015
Last Edit: Tue,03 Nov 2015
